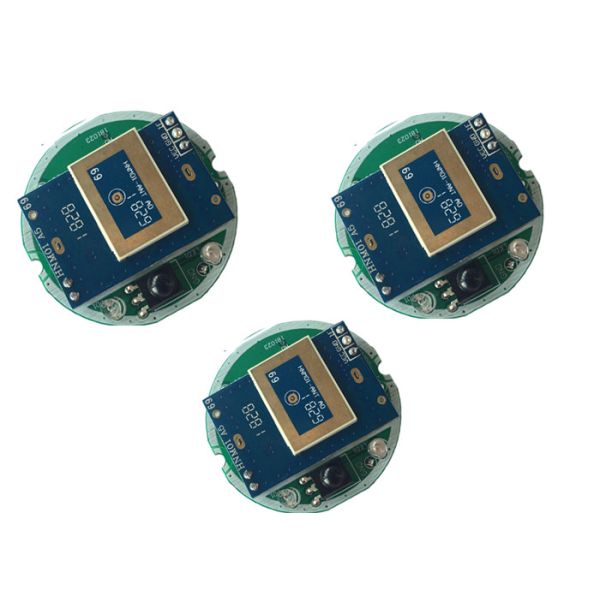

IP20 12V Microwave Sensor Remote Control Enhanced Detection Range For High Bay

  • 1
  • 2

Brand Name : Hynall

Model Number : HNS106HB

Certification : RED, FCC, RoHS

Place of Origin : Shenzhen, China

MOQ : 300pcs

Price : To be negotiated

Payment Terms : T/T

Supply Ability : 30,000pcs / month

Delivery Time : 3~4 weeks for bulk orders

Packaging Details : Bubble bag + carton. (color box or blister package also available on request)

Input voltage : 12V/24V DC

Output signal : 0-10V dimming signal

IR : remote commissioning

Detection range : Max. 18m in diameter

Mounting height : 10~12m

IP : IP20

Contact Now

12V /24V DC microwave sensor up to 16m-18m in diameter Enhanced Dection Range , for High Bay with remote control

Quick details:

Dual-processor technology, real Lux-off & daylight monitoring function for built-in application.

Super compact size, easy to be integrated.

Features--

Microwave: 5.8GHz C-band microwave
Input current ≧25mA
Mounting height: max. 10~12m
Operation temperature: -20℃ ~ +70 ℃
RoHS compliant

Settings(by remote control IR12)--

Permanent ON/OFF function

Press ON/OFFbutton, fixture goes to permanent on or permanent off mode, sensor is disabled.

*press "Auto” ,”Reset" or “Ambient learn” to quit this mode.

Dim +/-

Press "Dim" button to automatically dim up or down the light brightness during hold-time from 10% to 100%. Another press to lock it down when desired brightness is achieved.

Sensor mode

Press Auto button, the sensor starts to work and all settings remain the same as the latest status before the light was switched on/off.

Reset function

PressReset button, all settings go back to factory default settings.

Ambient learn

Press "Ambient learn" button, the latest surrounding lux value overwrites previous lux value learned, and set as the daylight threshold. This feature enables the fixture to function well in any real application circumstance.

Test mode

"Test mode"is for testing purpose only, for users to check the functionality and choose the desired detection range. The sensor goes to test mode automatically after pressing this button.

Users can quit this mode by pressing "ON/OFF", "Reset' or any button of "Hold time". The sensor settings are changed accordinglyIP20 12V Microwave Sensor Remote Control Enhanced Detection Range For High Bay

Detection pattern--

IP20 12V Microwave Sensor Remote Control Enhanced Detection Range For High Bay
